A diode is an electronic component that lets electric current flow mainly in one direction and blocks it in the other. That simple one-way behavior makes it useful in chargers, radios, LED lamps, solar panels, power supplies, and tiny circuits inside computers. A diode is small, cheap, and easy to overlook, but without it many circuits would fail, waste power, or send current where it should not go.
TLDR: A diode acts like a one-way valve for electricity. For example, in a basic 5 V power supply, four diodes can turn alternating current into direct current so a phone charger can feed steady power to a device. A common silicon diode drops about 0.7 V when current passes through it, so engineers must plan for that loss. In many small circuits, one diode costing only a few cents can prevent reverse-polarity damage that might destroy a component worth hundreds of times more.
Diode Definition: 5 Simple Facts That Explain What a Diode Is
A diode has two terminals. One side is called the anode. The other side is called the cathode. When voltage is applied in the correct direction, current can pass. When voltage is applied in the opposite direction, current is mostly blocked.
This sounds neat and tidy, but real diodes are not perfect. They have voltage drops, heat limits, speed limits, and leakage current. The catch is that beginner diagrams often make diodes look magical, then the real circuit behaves slightly differently. That is where the basic facts help.
Fact 1: A Diode Is a One-Way Current Gate
The most basic diode definition is this: a diode allows current to flow more easily in one direction than the other. In that sense, it behaves like a check valve in plumbing. Water can move one way through the valve. It cannot easily flow backward.
In electronics, this is called rectification. A diode can guide current so it moves in the desired direction. This is why diodes are used in circuits that convert AC, or alternating current, into DC, or direct current.
- Forward bias: The diode is connected so current can flow.
- Reverse bias: The diode is connected so current is blocked.
- Breakdown: Too much reverse voltage can force current through and may damage the diode, unless it is designed for that job.
Fact 2: A Diode Has an Anode and a Cathode
A diode’s two terminals are not interchangeable in normal use. The anode is the side where conventional current enters when the diode is forward biased. The cathode is the side where conventional current leaves.
On many physical diodes, the cathode is marked with a stripe. On a circuit symbol, the diode looks like an arrow-like triangle shape pointing toward a line. The line marks the cathode. It drives many learners crazy that the electron flow and conventional current direction are opposite ideas, but most circuit diagrams use conventional current.
If a diode is installed backward, the circuit may not work at all. In some cases that is useful. A diode placed across a relay coil, for example, can absorb a voltage spike when the coil turns off. In other cases, a backward diode simply blocks power and causes confusion.
Fact 3: A Diode Needs Enough Voltage to Turn On
A diode does not act like a perfect switch. It needs enough forward voltage before it conducts well. For a common silicon diode, this forward voltage is roughly 0.6 V to 0.7 V. For a Schottky diode, it may be closer to 0.2 V to 0.4 V. For an LED, it may range from about 1.8 V to over 3 V, depending on color and design.
This voltage drop matters. If a circuit runs from a small battery, losing 0.7 V can be a big deal. A 3 V coin cell, for example, has little room to spare. That is why low-voltage electronics often use Schottky diodes or special protection circuits.
Fact 4: There Are Many Types of Diodes
The word diode does not describe only one part. It describes a family of components that share the same basic one-way behavior but are built for different tasks.
- Rectifier diode: Used in power supplies to convert AC into DC.
- Signal diode: Used with small currents in radios, logic circuits, and switching applications.
- Zener diode: Designed to conduct in reverse at a set voltage, often for voltage control or protection.
- Schottky diode: Known for low forward voltage and fast switching.
- LED: A light-emitting diode that gives off light when current flows through it.
- Photodiode: Detects light and creates current or changes behavior when exposed to it.
An LED is often the easiest diode to recognize. It turns electrical energy into light. A red LED may need around 2 V, while a blue or white LED often needs about 3 V. If too much current flows through it, it can burn out fast. That is why LEDs usually need a resistor or current driver.
Fact 5: Diodes Protect, Convert, and Control Electricity
Diodes are used because they solve common circuit problems with very little fuss. They can protect against reverse battery connections. They can clamp dangerous voltage spikes. They can steer current between power sources. They can also shape signals in radios and audio circuits.

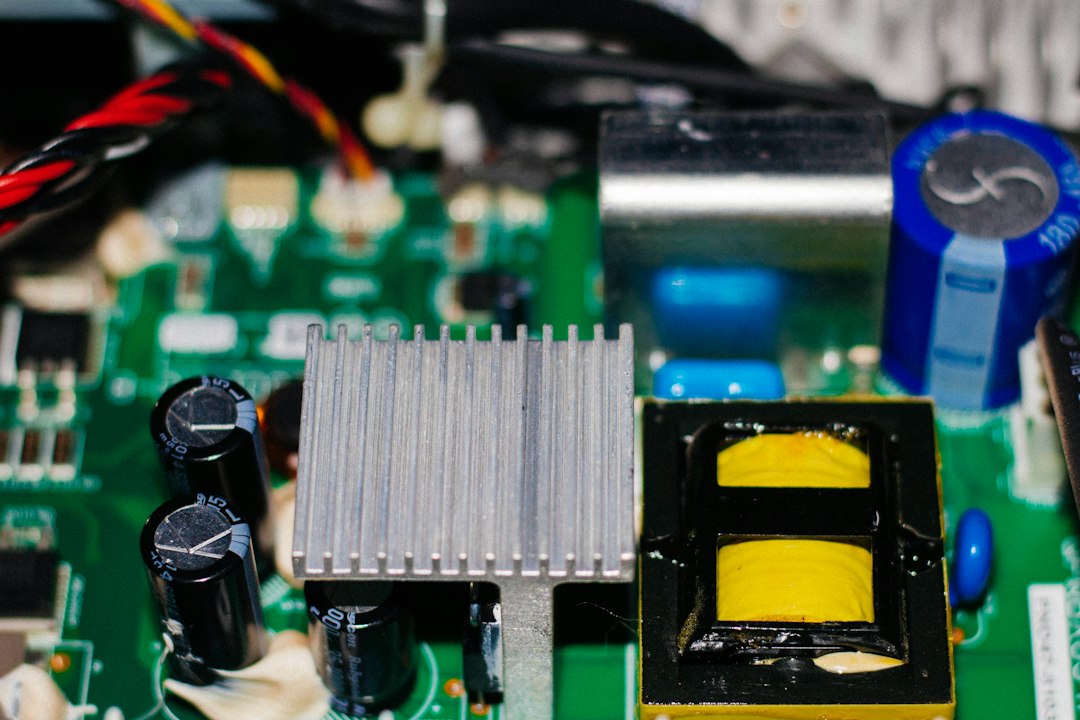

One common use is in a bridge rectifier. This circuit uses four diodes to convert AC into pulsing DC. After that, capacitors and regulators smooth the voltage. The result is the kind of DC power needed by phones, routers, LED strips, and many small devices.
Another common use is flyback protection. Motors, relays, and coils can create voltage spikes when switched off. A diode can give that stored energy a safe path. Without it, the spike may damage a transistor or microcontroller pin.
How a Diode Works in Simple Terms
Most diodes are made from semiconductor materials, usually silicon. Inside the diode is a p-n junction. One side has extra negative charge carriers, called electrons. The other side has positive charge carriers, called holes. Where they meet, a region forms that resists current flow until the right voltage is applied.
When the diode is forward biased, the barrier shrinks and current flows. When it is reverse biased, the barrier widens and current is blocked. This is the heart of diode behavior.
Real values depend on the diode’s rating. A tiny signal diode may handle only a small current. A large rectifier diode may handle several amps. Some power diodes are mounted to metal tabs or heat sinks because wasted energy turns into heat.
Common Diode Ratings to Check
Before a diode is used in a circuit, several ratings matter. Choosing the wrong part can cause weak performance or failure.
- Forward current: The safe current the diode can carry.
- Reverse voltage: The maximum voltage it can block.
- Forward voltage: The voltage lost while it conducts.
- Switching speed: How fast it turns on and off.
- Power dissipation: How much heat it can handle.
A small 1N4148 signal diode works well for fast, low-current switching. A 1N4007 rectifier diode is better suited for general power rectification at lower speeds. A Schottky diode may be chosen when every fraction of a volt matters.
Why the Diode Definition Matters
A clear diode definition helps people understand many larger electronics ideas. Power conversion, battery protection, LEDs, solar charging, radio detection, and voltage regulation all use diode behavior in some form.
The basic idea stays the same: current gets an easy path one way and a hard path the other way. Once that idea is understood, circuit diagrams become less strange. A small symbol on a schematic starts to explain what the circuit is trying to do.
FAQ
-
What is a diode in one sentence?
A diode is a two-terminal electronic component that lets current flow mainly in one direction and blocks it in the opposite direction. -
What are the two sides of a diode called?
The two sides are called the anode and the cathode. Current flows from anode to cathode when the diode is forward biased. -
Is an LED a diode?
Yes. An LED is a light-emitting diode. It works like a diode and produces light when current flows through it. -
Why does a diode have a voltage drop?
A diode needs forward voltage to overcome its internal semiconductor barrier. A common silicon diode often drops about 0.7 V. -
What happens if a diode is connected backward?
In most cases, it blocks current. If the reverse voltage is too high, the diode may break down or fail unless it is a type made for reverse breakdown, such as a Zener diode. -
What is the most common use of a diode?
One very common use is rectification, where diodes convert AC into DC in power supplies and chargers.
